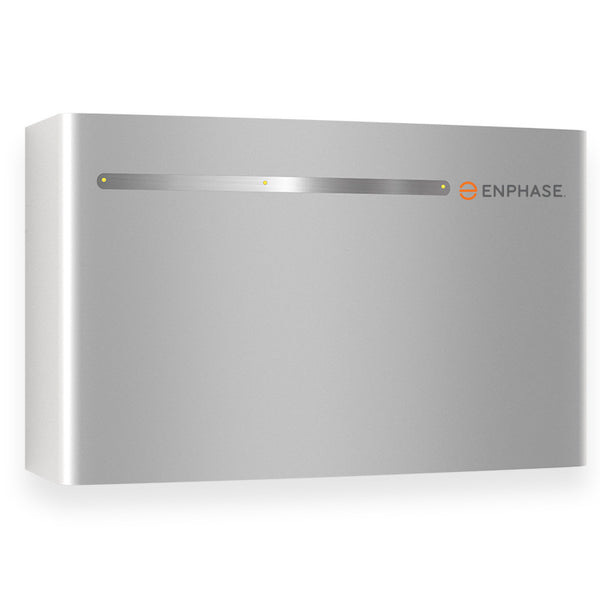

Enphase Encharge 10.5kWh Lithium-Iron Battery

Enphase Encharge 10 Battery Storage System

The Enphase Ensemble Encharge 10 battery is reliable, smart, simple, and safe. It provides the lowest lifetime energy costs with backup capability for both new and retrofit solar customers. As an installer, you can quickly design the right system size to meet the needs of the homeowner.

The Encharge 10 all-in-one AC-coupled storage system provides a total usable energy capacity of 10.5 kWh. It features twelve embedded grid-forming microinverters that provide great flexibility in starting small and adding incremental capacity.

The Enphase Ensemble Encharge 10 battery storage system with 3 3.36 kWh batteries 12 integrated Enphase IQ8X-BAT microinverters (4 ea. battery) and BMU (Battery Management Unit) w/ backup feature includes:

• Three Encharge 3.36kWh base units
  (B10-A01-US00-1-3)
• One Encharge 10 cover kit and mounting bracket with waterproof conduit hubs
  (B10-C-1050-O)
• Interconnection Kit for wiring between batteries
  (B10-W-AWG08-0700-O)

Part of the
Enphase Ensemble Energy Management System

Encharge 10 Battery Storage System Features

Reliable

• Proven high-reliability IQ Series Microinverters
• Ten-year limited warranty
• Extensive testing
• Passive cooling (no moving parts/fans)

Smart

• Utility TOU optimization
• Self consumption
• Remote upgrade
• Mobile app-based monitoring
• Grid-forming capability for backup operation

Simple

• Fully integrated AC battery system
• Quick and easy plug-and-play installation
• Interconnects with standard household AC wiring

Safe

• Battery safety tested
• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

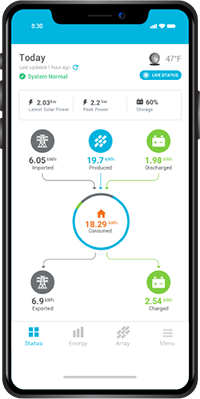

Monitoring using the Enlighten mobile app

All of the monitoring and control anyone could need is conveniently combined into one, easy-to-use mobile app that they can access anywhere, anytime.

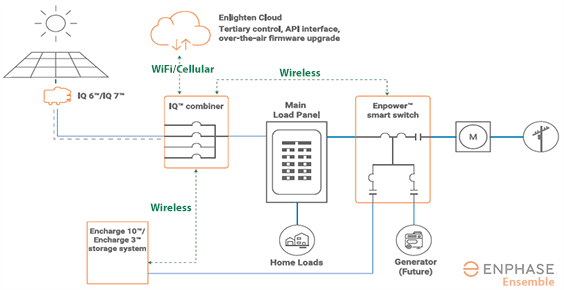

Enphase Whole Home Battery Backup

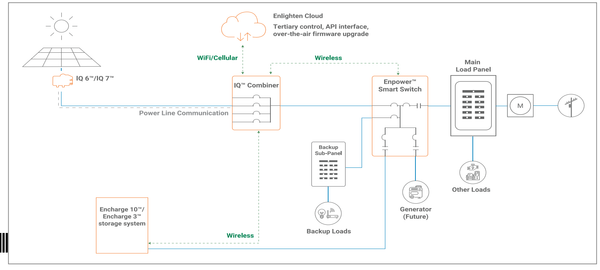

Complete Enphase Ensemble System:

Ensemble technology systems include the following Enphase products:

• Encharge Battery System
• IQ Microinverters
• Enpower Smart Switch
• Wireless Communication Kit
• IQ Combiner w/ Envoy
• Consumption CT

Enphase Model Number	ENCHARGE-10-1P-NA
OUTPUT (AC)	@240 VAC
AC Continuous Power	3.84 kVA
Nominal Voltage	240 VAC
Nominal Frequency	60 Hz
Rated Output Current	16 A
Interconnection	Single phase
Round Trip Efficiency	89%
BATTERY
Usable Capacity	10.1 kWh
Round Trip Efficiency	96%
Maximum DC Voltage	73.5 V
Chemistry	Lithium iron phosphate (LFP)
ENCHARGE 10 BASE KIT
Weight (lbs)	346.0 (3x 97.4 + 53.8 cover/mount)
Height (in)	26.14
Width (in)	42.13
Depth (in)	12.56
