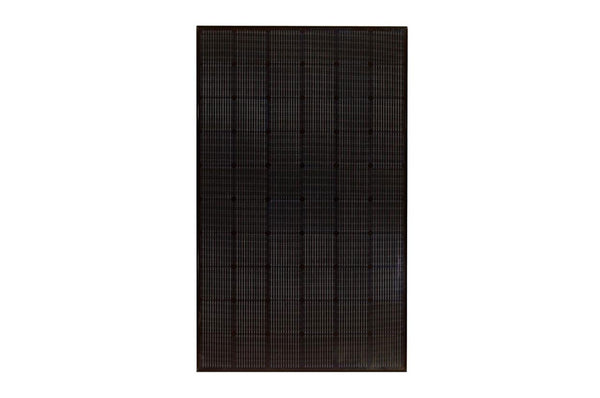

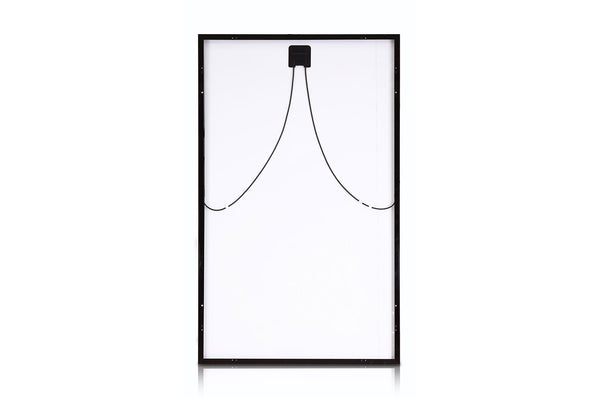

LG Black Mono 355W 60 Cell
LG SOLAR 355W MONO SOLAR PANEL - NEON2 BLACK - LG355N1K-V5 |
LG, NeON2 Black, PV Modules, Mono, Black Frame, MC4 Connectors, USA, LG355N1K-V5 LG Electronic's NeON 2 all black module series is one of the most powerful and beautiful modules available. 60 NeON 2 N-Type Mono cells with cello technology with MC4 Connectors. Energy output and overall module performance are boosted by LG's multi busbar Cello Technology. LG-335N1K-V5 comes with the LG's 25-25-25 warranty, one of the most comprehensive module warranties available today. The LG NeON® 2 is LG’s best selling solar module, and is one of the most powerful and versatile modules on the market today. Featuring LG’s Cello Technology, the LG NeON® 2 increases power output. New updates include an extended performance warranty from 86% to 90.08% to give customers higher performance and reliability. |
Features
|
General Information | |
Manufacturer: | LG Solar |
Product Line: |
NeON2 Black |
Model ID: |
LG355N1K-V5 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
66.93 x 40.00 x 1.57 inches |
Weight: | 39.68 lbs |
Cells: | 6 x 10 |
Cell Type: | Monocrystalline / N-Type |
Connector Type: | MC4 / MC |
Junction Box: | IP68 with 3 Bypass Diodes |
Cables: | 1000 mm x 2 Ea |
Glass: |
Tempered Glass with AR Coating |
Backsheet Color: | Black |
Frame: | Anodized Aluminum |
Operating Temperature: | -40°C to +90°C |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 355 Watts |
MPP Voltage (Vmpp): | 36.4 Volts |
MPP Current (Impp): | 9.76 Amps |
Open Circuit Voltage (Voc): | 43.1 Volts |
Short Circuit Voltage (Isc): | 10.44 Amps |
Module Efficiency: | 20.6% |
