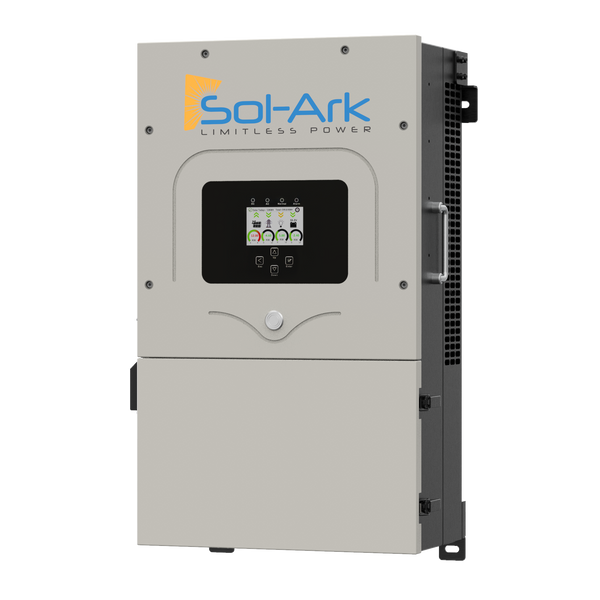

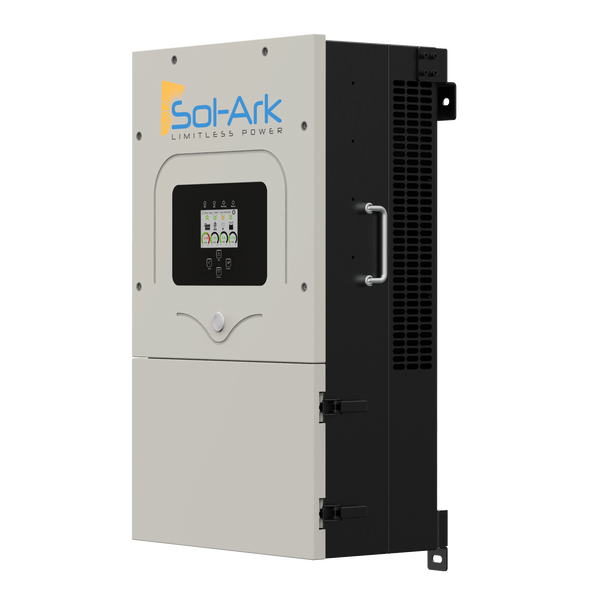

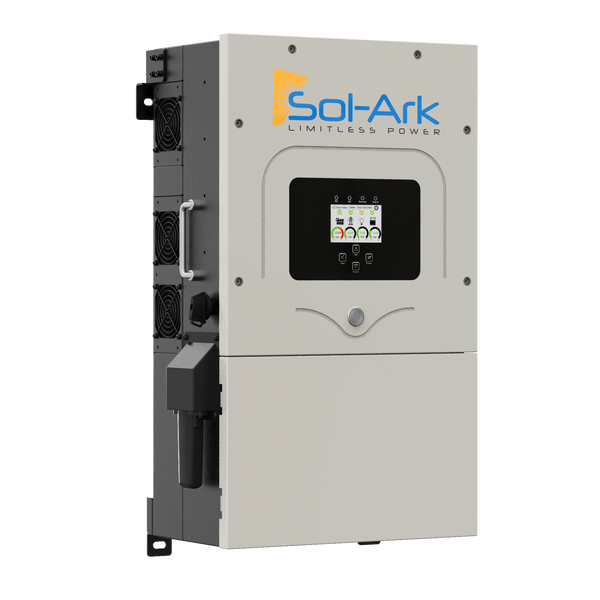

Sol-Ark 5K-2P Hybrid Inverter
Product Details
Sol-Ark hybrid inverters simplify installation, providing everything you need for your solar system to run smoothly. Thanks to Sol-Ark’s remote access features and app, you’ll always be in the know when it comes to quick repairs or system adjustments, no matter where you are. Plus, Sol-Ark’s award-winning iron-clad warranty and 7-days-a-week engineering support is ready to assist you with all your needs, and comes free with Sol-Ark inverters.
Features
- Supports simultaneous AC and DC coupling
- 63 Amp Grid or Generator Passthrough
- 4ms UPS – No glitch transfer capability
- 2 MPPTs to allow for different solar panel orientations
- Integrated Arc Fault and Rapid Shutdown
- Remote Access
- Compatible with any 48 volt battery system
- Integrated 250A Battery Breaker/Disconnect
Is This Inverter Right for Me?
If you’re looking for independence from the utility and the freedom to add a battery to your system, this inverter is a great option. Unlike other inverter brands, Sol-Ark is flexible and battery agnostic.
Warranty Information
- 5-year warranty
Warranty: Download
Specifications
General Information:
| Manufacturer | Sol-Ark |
| Model Number | 5K-2P |
| Certifications | UL1741 – 2010/2018, IEEE 1547a – 2003/2014, FCC 15 Class B, UL1741SA, CA Rule 21, HECO Rule 14H |
Mechanical Specifications:
| Dimensions | 30.0” x 18.3” x 10.0” |
| Weight | 78 lbs |
Electrical Specifications:
| Nominal AC Output | 5,000 Watts |
| Max Output Current to the Grid | 20.8 Amps |
| Max Output Current as Back-up | 20.8 Amps |
| Battery Input Voltage | Nominal 48 Volts |
| Max Efficiency | 97.5% |
| Max PV Power at STC | 6,500 Watts |
| Max DC Voltage | 500 Volts @ 18 Amps, 450 Volts @ 20 Amps |
| Start Voltage | 125 |
| MPPT Operating Voltage | 150 - 425 Volts |
| Max Short Circuit Current per MPPT | 2 Strings |
| Max Operating Current per MPPT | 10 Amps (Self Limiting) |
Datasheet: Download file
Installation Guide: Download file
